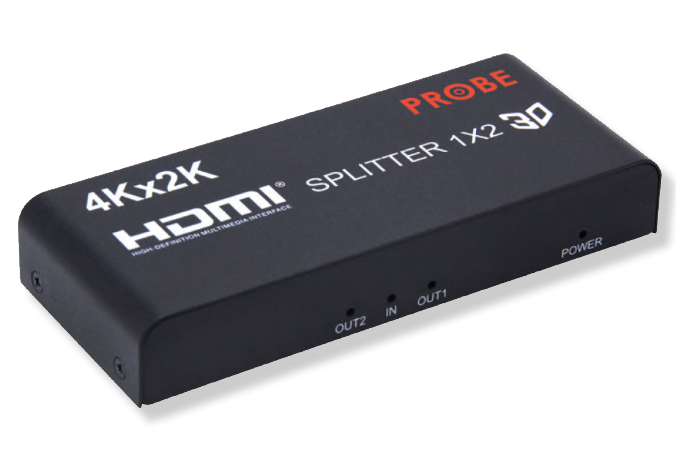

P-HDMI 1x2-4K
1x2 HDMI Splitter
The 1x2 HDMI Splitters uses a single HDMI source,accessing to multiple HDMI sinks.It allows one HDMI device to be split easily to 2 HDMI compatible monitors or projectors.In addition，it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840x2160/30Hz.
Key Features：
►HDMI 1.4b
►Full 3D
►HDMI to 3840x2160/30Hz
►Max baud rate 3.4G/max
bandwidth 340Mhz
►Deep color 8/10/12bit
►Input up to 8 meters AWG26 HDMI
►Output up to 8 meters
►AWG26 HDMI standard cable length
►Display single source to
multi-output HD signal
►5V/1A power adapter

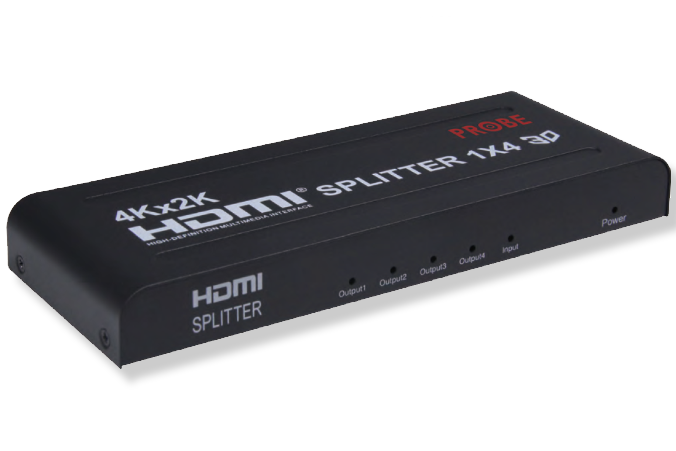

P-HDMI 1x4-4K
1x4 splitter
This hdmi 4K 1x4 splitter use a single HDMI source,accessing to multiple HDMI sinks .It allows one HDMI device to be split easily to four HDMI compatible monitors or projectors.In addition，It can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840X2160/30HZ.
Key Features：
►HDMI 1.4b
►3D video format
►HD up to 3840x2160/30Hz
►Highest rate of 3.4 G
►TMDS clock up to 340 MHz
►8/10/12 bit deep color
►Support AWG26 HDMI
►Input to 20 meters
Output up
to 20 meters
►4K, input to 15 meters
Output up
to 15 meters
►Single HDMI source to multiple
HDMI sinks

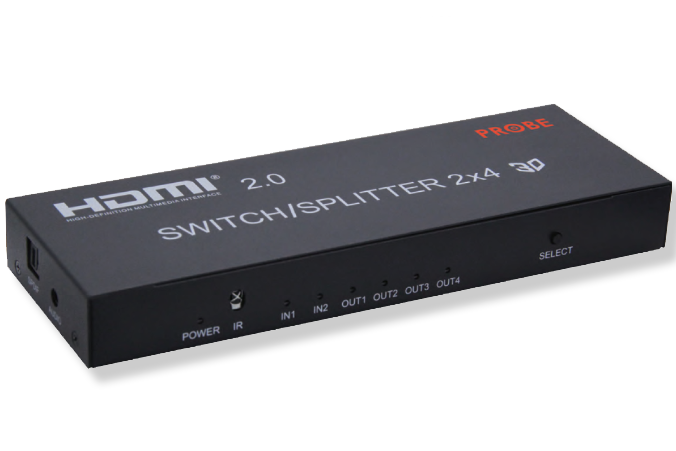

P-HDMI SW2x4
2 x 4 HDMI 2.0 switch splitter
The 2 x 4 HDMI 2.0 switch splitter can connect 2 hd signal sources to 4 hd display terminals.It can easily split the 2 hd
signals generated by the 2 hd signal sources to 4 hd displayers or projectors.In addition, when connect it to a HDMI
output cable, it can amplify the HDMI singal. The 2 signal sources can be switched freely.The HDMI splitter supports all hd multichannel
audio formats including 720p, 1080i, 1080p,2160p@30Hz,2160p@60Hz. It also supports
the 3.5 mm audio output and SPDIF audio output.
Key Features：
►Down-scaling simultaneous out 4K/1080p
►Supports 4K/60Hz RGB/YUV 4:4:4；
►Transmission long distance:
4K/60Hz up to 10meters
1080p up to 20meters

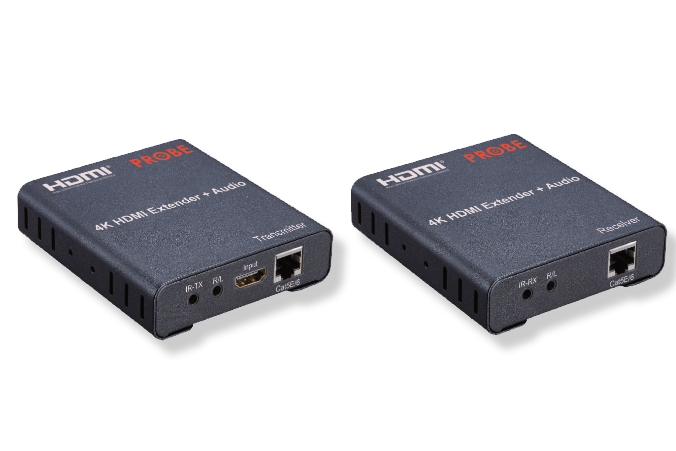

P-HDMI ED100ft-4KL
HD Extender with audio
The Extender uses single cat5e cables instead of HDMI cable to transmit high definition signal up to 100 feet, cutting
down the cost. The Extender is designed to supply for long distance transmission of high definition signal.
Key Features：
►Support HDMI 1.4
►Local loop-out
►100ft long distance transmission
►Low power consumption
►Low temperature
►Support for 3D video format;
►TX and RX support 3.5MM
stereo
►Support IR control
