VIDEO RADAR ARRAY

With the rapid development of science and technology, the demand for high-level security protection is increasingly becoming more affordable. Demand for electronic and intelligent defense products has allowed the industry to focus on more sophisticated intrusion detection systems, which include radar that can identify targets rapidly and effectively. Our PROBE radar Perimeter security protection systems are designed to guard border areas with a combination of deep learning cameras, combined with radar sweeping systems. Traditional perimeter security protection system mainly include infrared alarm, vibration sensor alarm, microwave correlation systems, anti-escape raster fencing, electrostatic induction alarms, micro-visual alarms, etc. Unfortunately, combining these technologies does not ensure a seamless solution with under performing results. Compared with the above traditional perimeter detection technology, radar detection technology is proven to deliver better accuracy over a wider protection coverage. Combined with AI camera technology, radar offers precise orientation, distance, speed of the target and visual tracking with artificial intelligent identification augmentation.

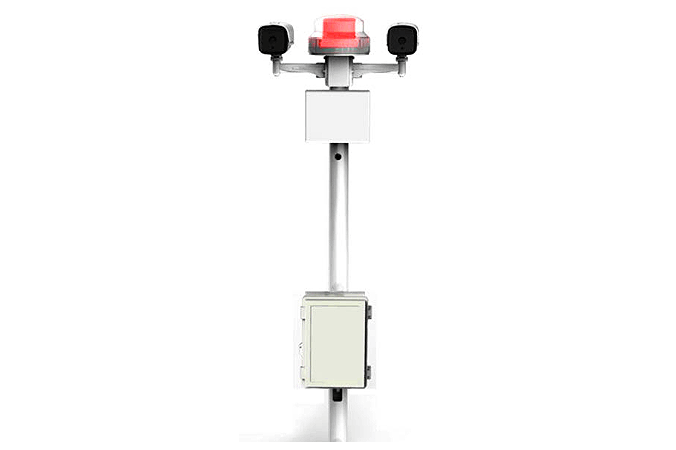

PB-RA100VF System

PB-RA100VF integrated radar visual fusion alarm system are the new generation of multi sensor perimeter alarm system , which has lower false alarm, higher recognition rate. It adopts compound intrusion sensors with multiple techniques to detect targets. Radar sensor utilizes advanced digital signal processing technology to effectively capture and detect targets, and then directly transfer the signal to video acquisition system. The dual-mode sensors would synchronously transfer the signal to alarm center by digital network and realize the real video relevant action. The video data could be cached in real time and provide video browsing and recording in 5s before alarm. This is our great breakthrough in radar technology and video interactive technology.

►High resistant to interference
►Adopts the principle of background cancellation to detect the
   moving targets at all time and all weather.
►Supports 10 op tional frequency channels to avoid interference
   from nearby 24GHZ traffic speed-measuring radar.
►Rapid detection reaction
►Adopt the cutting-edge FPGA and dual ARM heterogeneous processor,
   the scanning to the monitoring environment is no less than 10 times
   per second.
►High detection accuracy
►Advanced pattern recognition technique, will recognize small animals
   like flying birds or cats, which greatly reduce the false alarm rate

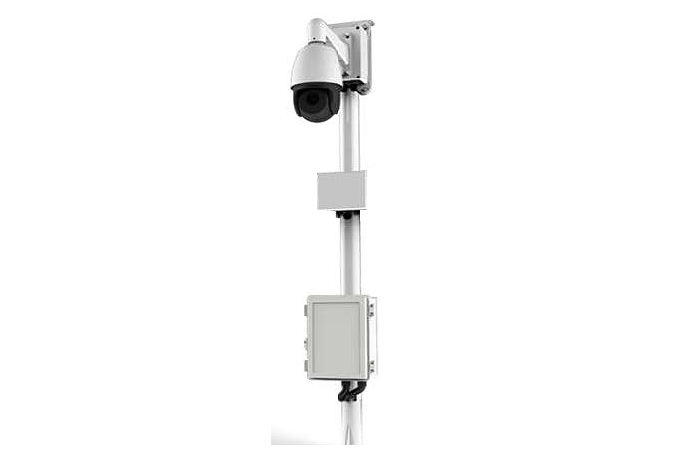

PB-RA300VFW System

PROBE PB-RA300WVF is a radar and video fusion intelligent alert system. The system gives early warning when the target enters into protection zone, meanwhile, positioning the target by detecting it's distance, angle and speed. After double audit of video analysis technology and AI algorithm, the system will determines whether the target needs to be alerted or not. This system realized fusion of radar and visual signal, which highly integrates the active detection, high sensitivity of the radar technology with video intelligence analysis. It greatly improves target detection and identification performance of system.



►Intelligent algorithms and active learning ability allows it to be adapted  to
   different environment and target identification; the system also
   support integration with various customized platforms.
►3D Protection: the system adopts fusion technology of video and radar to
   create a three-dimensional protection system that can identify various
   moving targets of 1m² within 300m.
►Active Detection: Electromagnetic beams are actively launched and
   the target echoes are detected at the speed of 8 times per second to
   obtain the target's position, distance, and other information.
   At the same time, visual tracking is performed in real time to locate
   the invasion target and alarm
►Multi-target Detection :Supports detection and tracking of 32 targets at
   the same time and ≤10 target data synchronization outputs.

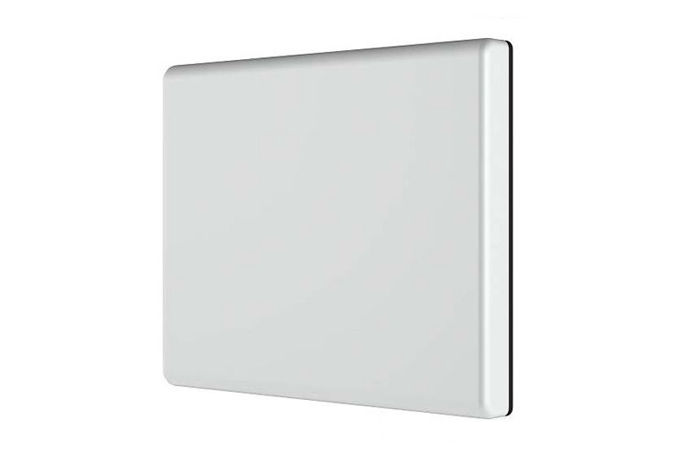

PB-RA100 Wide Area Detection Radar

PB-RA100 Wide Area Detection Radar is most efficient solution for wide area intrusion detection and protection. It comes with superb and accurate detection features by forming 90°, 180°, 270° and 360° arrays. As the new generation of three-dimensional perimeter security working at 24GHz waveband, integrates digital transmitters and receivers. It can efficiently detect the angle, distance, velocity of intruders. Besides, It can performance reliably under severe circumstances and has extended functions. Moreover, it can also realize the auto-adjustment and support remote alarm and remote control.

►Wide detection range
►Multiple targets tracking
►Rapid detection reaction
►High detection accuracy
►Easy to install
►Open to system integration

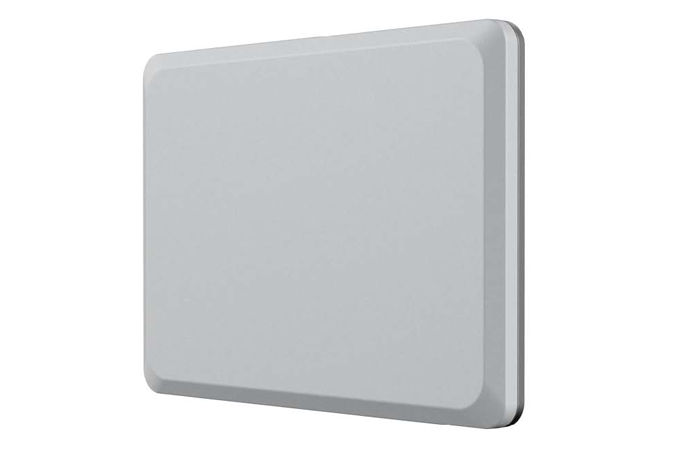

PB-RA300 Wide Area Detection Radar

PB-RA300 Wide Area Detection Radar is most efficient solution for wide area intrusion detection and protection. It comes with superb and accurate detection features by forming 90°, 180°, 270° and 360° arrays. As the new generation of three-dimensional perimeter security working at 24.05~24.15GHz waveband, integrates digital transmitters and receivers. It can efficiently detect the angle, distance, velocity of intruders. Besides, It can performance reliably under severe circumstances and has extended functions. Moreover, it can also realize the auto-adjustment and support remote alarm and remote control.

►Active detection: 24-hour continuous detection.
►Stereo protection: stereo space, all round protection.
►Real-time scanning: 8 times electronic scanning per second.
►Electronic perimeter: free setting the protection area and time.
►Radar-PTZ linkage solution: realize the perfect
   combination of the video and the radar.
